Every one of the document types Docraft was designed for — invoices, medical reports, industrial QC reports — involves at least one number a reader is supposed to compare against another number. Until this week, the only way to make that comparison visible in a .craft document was a table. If you wanted a bar or a line instead, you were on your own: hand-position a stack of <Rectangle> elements and hope nobody asked you to change the data.
v1.0.0-RC3, released today, closes that gap with two new elements: <Canvas>, a free-form drawing surface, and <Chart>, five chart styles built directly on top of it.
Canvas: stepping outside the flow
Every other container in the Craft Language block-stacks its children — each one goes below the last, the way a paragraph follows a paragraph. <Canvas> is the exception: its children position themselves by their own x/y coordinates relative to the canvas’s own top-left corner, and anything drawn outside the canvas’s bounds gets clipped. It’s the one place in a Docraft document where you’re back to specifying exact coordinates on purpose.
<Canvas width="200" height="150" background_color="#F5F5F5">
<Circle x="20" y="20" width="30" height="30" background_color="blue" />
<Line x1="0" y1="100" x2="200" y2="100" border_color="black" />
</Canvas>
On its own, <Canvas> is just a positioning primitive. What makes it worth having is that <Chart> is built on top of it — “each chart style is a small ‘plugin’ that fills a canvas with ordinary primitive nodes (lines, circles, rectangles, text), so nothing renderer-side needs to know about charts at all,” per the charts documentation. That’s the same design instinct behind the Loom architecture: a chart isn’t a special case, it’s a node that happens to draw other nodes.
Chart: one element, five styles
A <Chart> needs an explicit width, height, and style, and one or more <Series> children carrying its data as a JSON array — either coordinate pairs for continuous data, or {"label": value} entries for categorical data.
<Chart style="scatter" width="480" height="300" title="Height vs. Weight by Age Group"
x_label="Height (cm)" y_label="Weight (kg)">
<Series name="Teens" color="#2CA02C" model='[[150,42],[155,48],[158,50],[162,55]]' />
<Series name="Adults" color="#1F77B4" model='[[160,55],[165,60],[170,68],[175,72]]' />
</Chart>
Scatter plots one dot per point, unconnected — for showing whether two continuous variables are actually related.

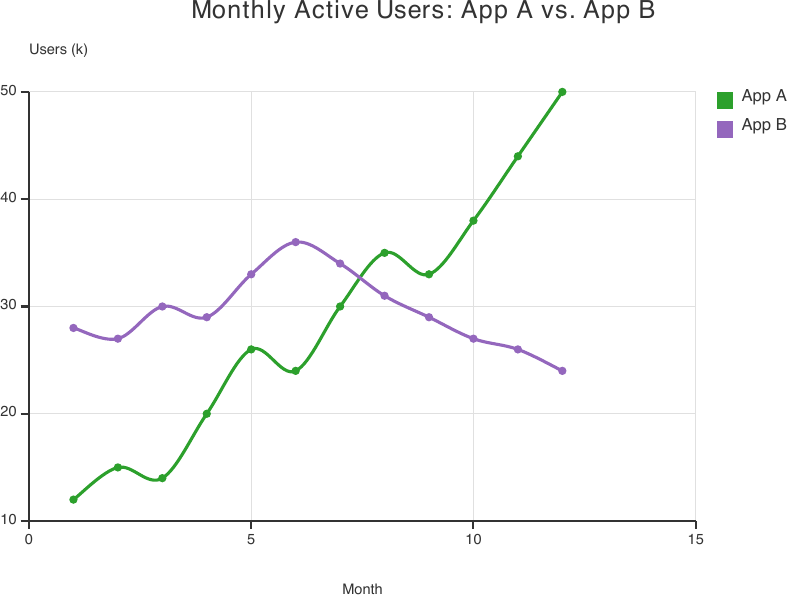

Spline draws a smooth, interpolated curve through each series — useful when a trend should read as continuous rather than jagged. The image above is two series with crossing trend lines; the interpolation stays smooth right through the crossover.

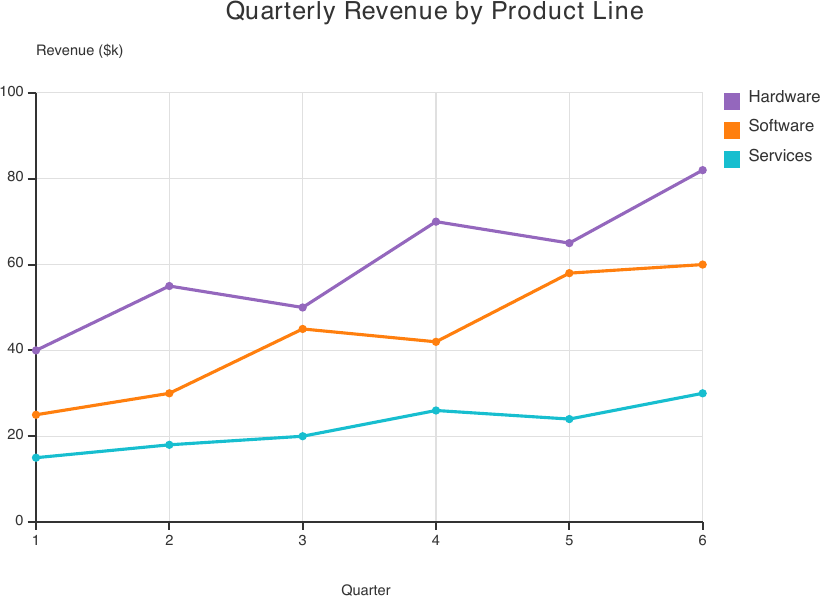

Line uses the same data shape as spline but connects points with straight segments instead of a curve — the honest version of a trend when you don’t want to imply smoothness that isn’t in the data.

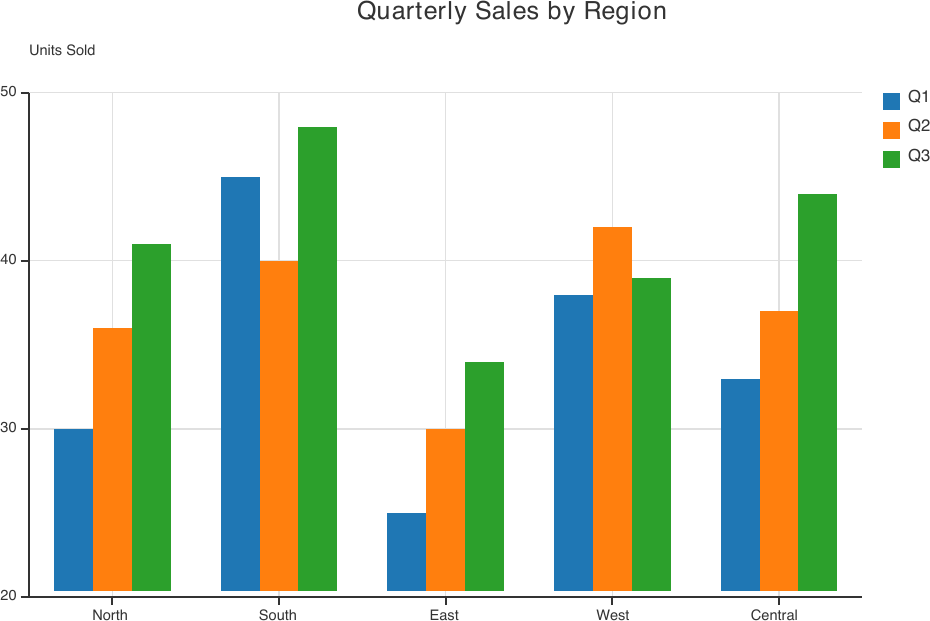

Histogram draws grouped bars, one per data point, side by side within each shared category. A detail worth calling out: the Y axis auto-zooms to the actual data range instead of always starting at zero — visible above, where the axis starts around 20, not 0 — so small differences between bars stay readable instead of getting flattened by a tall, mostly-empty baseline.

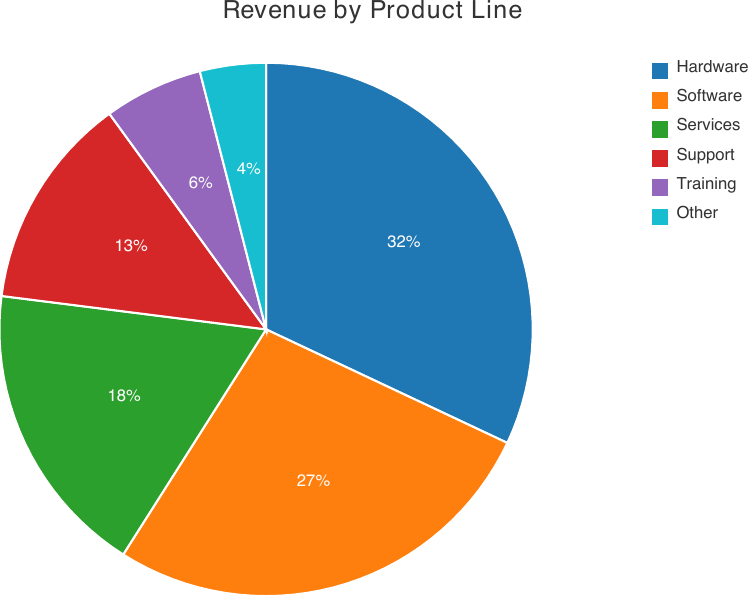

Pie has no axes at all — each <Series> point becomes a slice sized by its share of the total.
Composition instead of a dashboard node

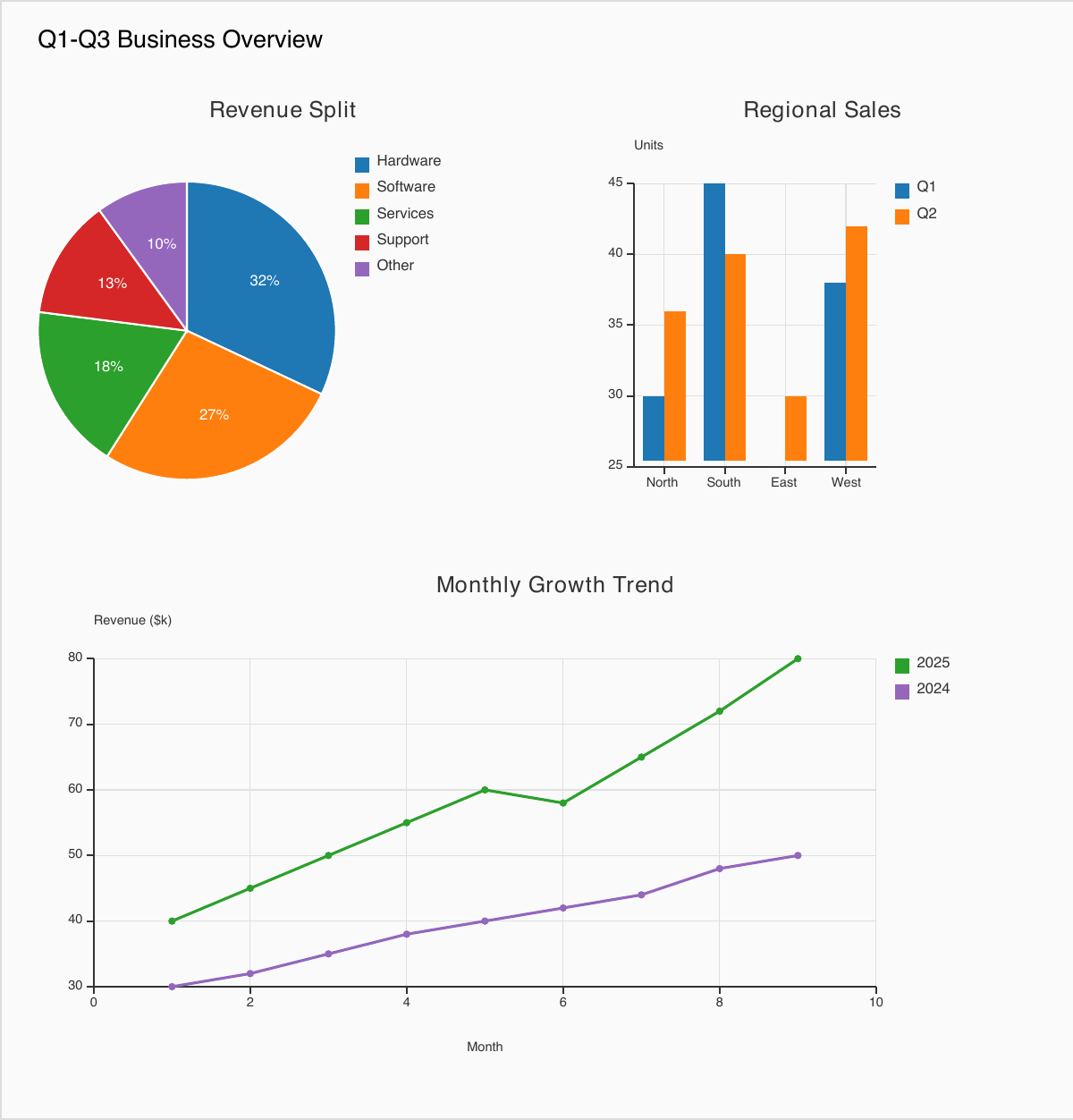

There’s no dedicated “dashboard” element and no “annotated chart” element. The docs are explicit about this: because <Chart> is just another node, it can be nested inside <Canvas> alongside ordinary shapes and text, each positioned by its own x/y — so a dashboard is just several charts on one canvas, and an annotation is just a <Rectangle> and a <Text> sitting near a chart’s edge.
<Canvas width="600" height="600" background_color="#FAFAFA" border_color="#DDDDDD" border_width="1">
<Text x="20" y="16" font_size="13" bold="true">Q1-Q3 Business Overview</Text>
<Chart x="10" y="50" style="pie" width="290" height="230" title="Revenue Split">
<Series model='[{"Hardware":32},{"Software":27},{"Services":18},{"Support":13},{"Other":10}]' />
</Chart>
<Chart x="300" y="50" style="histogram" width="290" height="230" title="Regional Sales">
<Series name="Q1" model='[{"North":30},{"South":45},{"East":25},{"West":38}]' />
</Chart>
<Chart x="10" y="305" style="line" width="580" height="270" title="Monthly Growth Trend">
<Series name="2025" model='[[1,40],[2,45],[3,50],[4,55],[5,60]]' />
</Chart>
</Canvas>

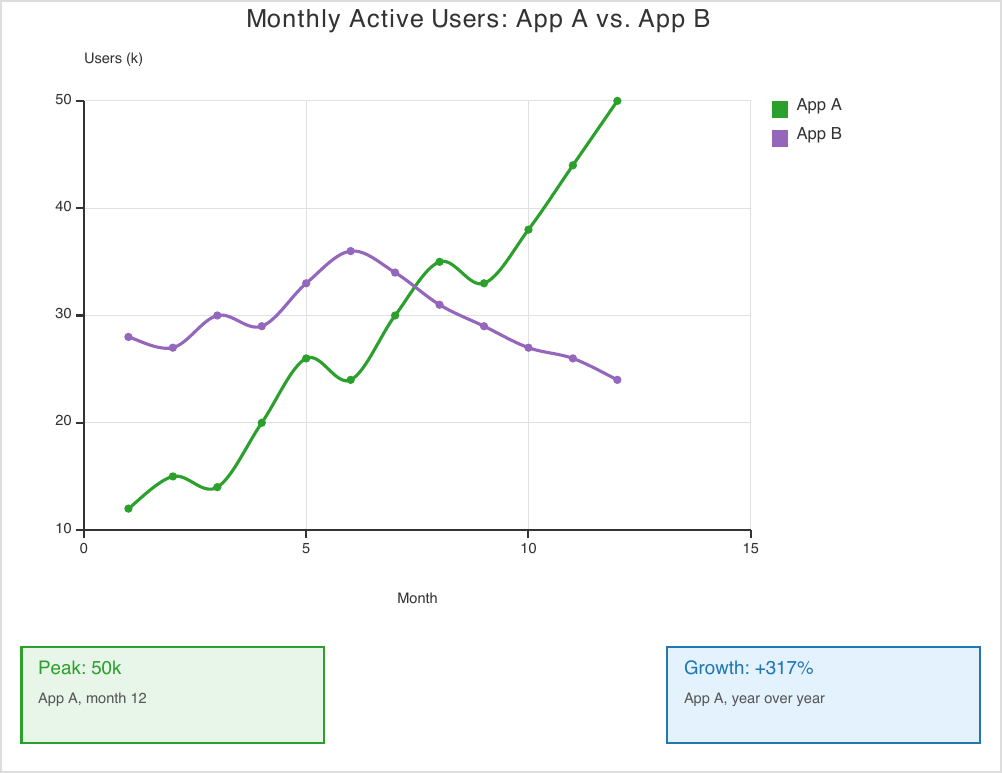

The same idea covers annotations: wrap a <Chart> in a <Canvas> and drop <Rectangle>/<Text> callouts near it, positioned relative to the chart’s outer bounding box. One caveat worth knowing if you try this yourself — a chart’s internal plot coordinates (where a specific data point actually lands in pixels) aren’t exposed back to the .craft file, so a callout can sit next to a chart, but it can’t be pixel-aligned to one exact data point without already knowing that chart’s own axis scaling.
Seeing it in a real document
The clearest demonstration of all of this together is the new Sales Performance Report example — KPI cards, a pie-and-histogram dashboard on one canvas, and a year-over-year trend chart, in one actual report rather than isolated snippets. I’ll walk through that one alongside Docraft’s other example templates in the next post.
Full attribute reference for both elements is in the Craft Language docs. This is RC territory, not stable 1.0, so I’d treat the chart syntax as solid but not frozen — if you build something with it, I’d like to know what broke or what was missing. The repository is github.com/Cadons/Docraft.
